I was just wondering why when I program to make more than one pass for z depth on the same toolpath it doesn't run the toolpath, it only will run it if I'm only doing 1 pass.
multipass option for z depth
Moderator: andrew
Forum rules
Always indicate your operating system and QCAD version.
Indicate the post processor used.
Attach drawing files and screenshots.
Post one question per topic.
Always indicate your operating system and QCAD version.
Indicate the post processor used.
Attach drawing files and screenshots.
Post one question per topic.
-
red_beard_mexican
- Newbie Member
- Posts: 3
- Joined: Tue May 06, 2025 9:58 pm
multipass option for z depth
- Attachments
-

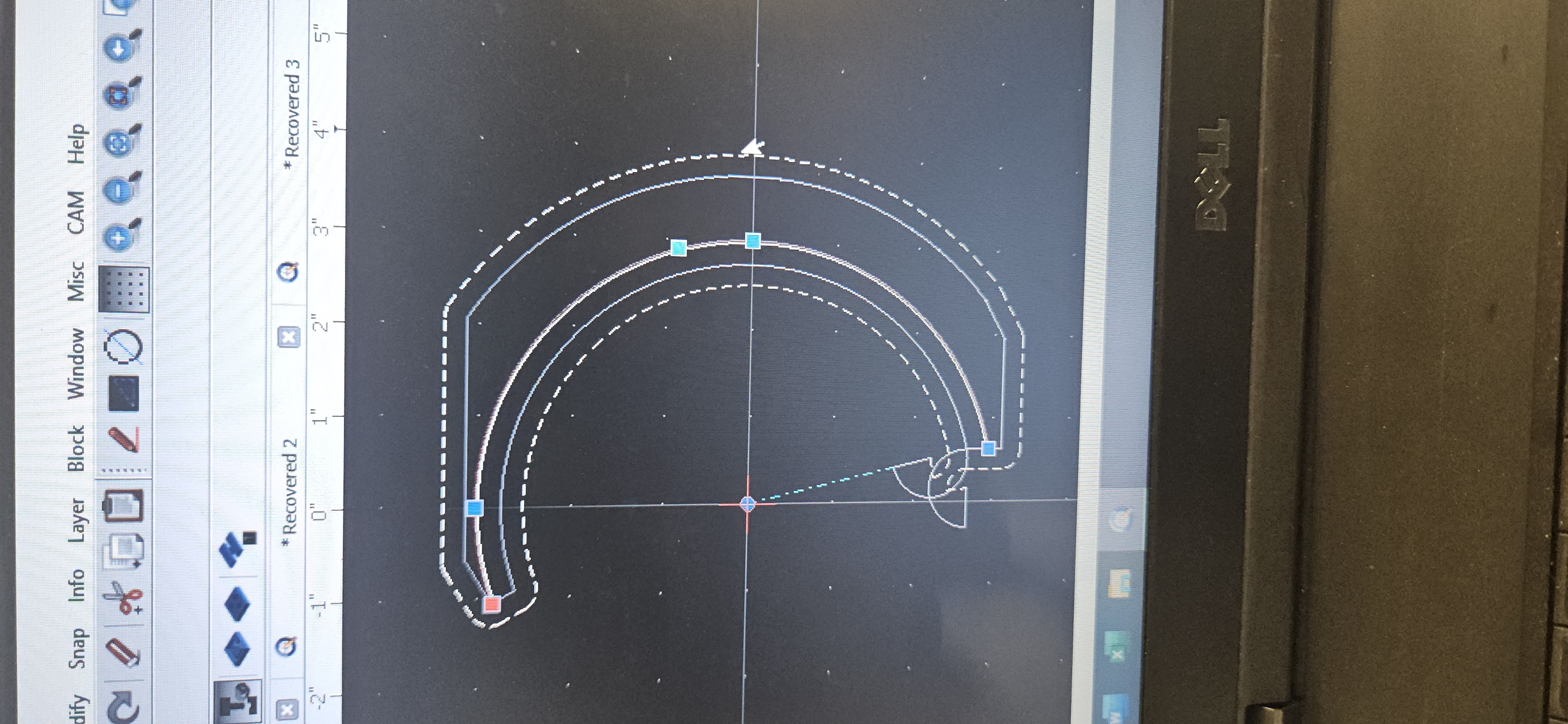

- qcad image 2.jpg (3.05 MiB) Viewed 27340 times
-
- qcad image 1.jpg (2.16 MiB) Viewed 27340 times
- andrew
- Site Admin
- Posts: 8791
- Joined: Fri Mar 30, 2007 6:07 am
Re: multipass option for z depth
The "Cut depth (c)" is a distance, not a Z-level. I.e. it must be positive.
For example:
Safe Z (a): 0.2 in
Start Depth (b): 0.0 in
Cut Depth (c): 0.8 in
Passes: 2
This means the tool approaches the material at Z=+0.2. The material top surface is at Z=0.0in. The first pass cuts at Z=-0.4in, the second pass at Z=-0.8in.
For example:
Safe Z (a): 0.2 in
Start Depth (b): 0.0 in
Cut Depth (c): 0.8 in
Passes: 2
This means the tool approaches the material at Z=+0.2. The material top surface is at Z=0.0in. The first pass cuts at Z=-0.4in, the second pass at Z=-0.8in.
-
red_beard_mexican
- Newbie Member
- Posts: 3
- Joined: Tue May 06, 2025 9:58 pm
Re: multipass option for z depth
thank you I just tried it and it worked, I sure was programming it wrong I was programming negative depth so it wasn't coming up right, it kept going positive instead of negative.
-
CVH
- Premier Member
- Posts: 4958
- Joined: Wed Sep 27, 2017 4:17 pm
Re: multipass option for z depth
Hi,
Typically the top of your material is considered to be Z-zero.
This allows you to zero your setup in Z, best after zeroing in XY.
Zeroing on the milling bed is counter-productive and not really supported.
Tool length compensation is also not a QCAD/CAM feature.
Zeroing in Z then means that each tool is zeroed manually so that it will barely scratch the surface.
What I do is a bit different.
Depth of cut is critical for an engraver using a V-tip.
With the milling motor off I zero on a shim that is 0.20 mm thick.
0.18 mm should fit loosely, 0.22 mm should not go.
Then I alter the actual work height that is now set to zero to 0.20 mm above the surface.
Even more accurate than a fixed tool-setter sensor.
In your configuration dialog I remark Feed Rate = 6 and Plunge Rate = 30.
Many mills are not really configured to plunge straight down like a drill.
The settings should be rather the opposite.
Cutting sideways at FEED 30 and plunging gently at FEED 6.
Regards,
CVH
